Superscalar Processor

Prerequisite - Pipelining

A more aggressive approach is to equip the processor with multiple processing units to handle several instructions in parallel in each processing stage. With this arrangement, several instructions start execution in the same clock cycle and the process is said to use multiple issue. Such processors are capable of achieving an instruction exeuction throughput of more than one instruction per cycle. This is "Superscalar Processor".

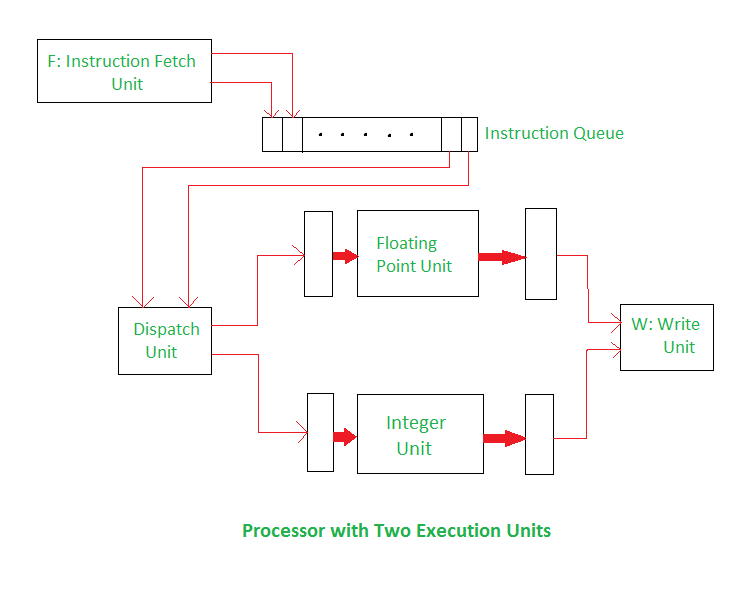

In the above diagram, there is a processor with two execution units; one for integer and one for floating point operations. The instruction fetch unit is capable of reading the instructions at a time and storing them in the instruction queue. In each cycle, the dispatch unit retrieves and decodes up to two instructions from the front of the queue. If there is one integer, one floating point instruction and no hazards, both the instructions are dispatched in the same clock cycle.
